Accessories and Spares

The Pro Antennas guying kit is designed to work with the I-Pro Home and I-Pro Traveller antennas but it is also suitable for many other portable antennas and masts.

Guying kit

Line-Lok tensioner

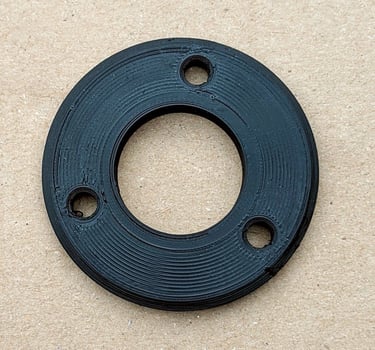

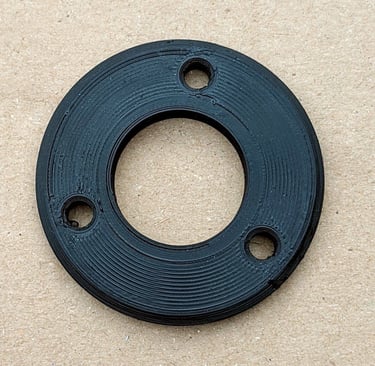

The guy rings are custom designed and 3D printed in ASA. The smaller ring has an internal diameter of 26mm to fit our portable antennas and the larger ring will fit a 38mm mast section.

The guy lines are 3mm diameter and 4.8m long. Other lengths are available on request. A custom winder is provided to store and transport the guy lines.

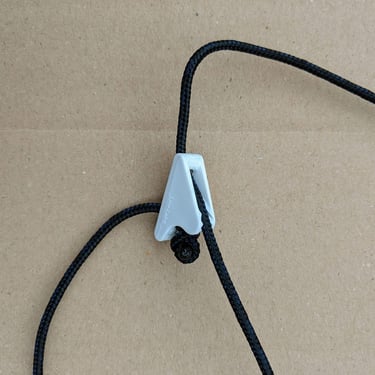

LineLok cleats are used for tensioning the guy lines and snap hooks connect the lines to the guy ring.

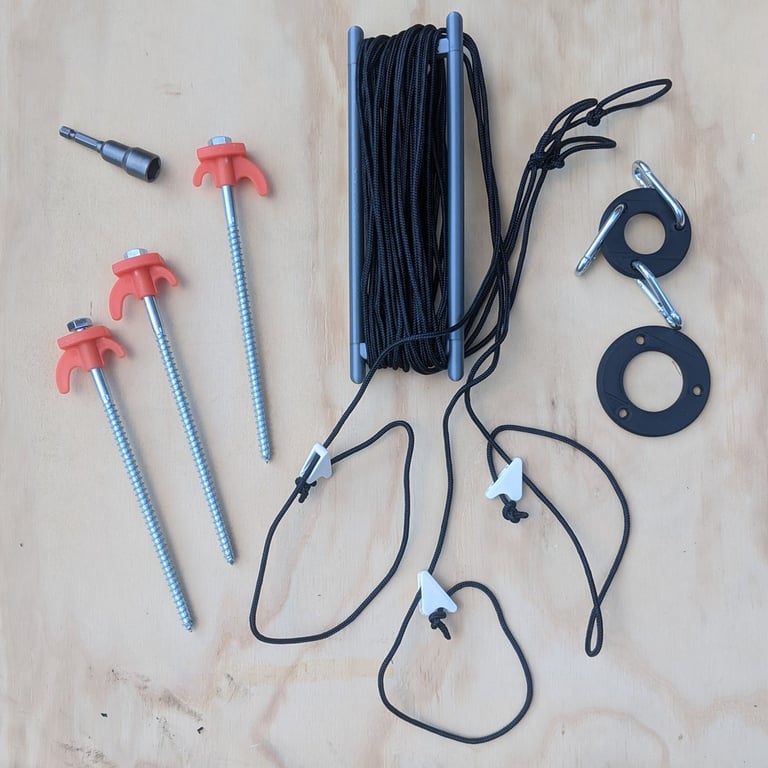

The kit contains 2 guy rings, 3 guy lines with Line-Lok tensioners and snap hooks, a cable winder for the guy lines, 3 screw in ground pegs and a drill adapter.

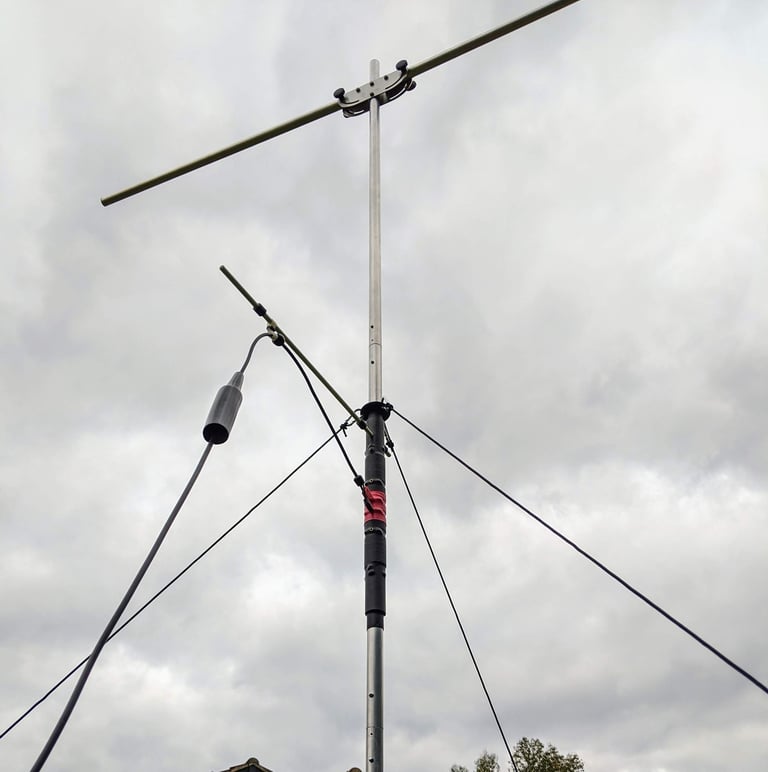

I-Pro Traveller fitted with the guying kit

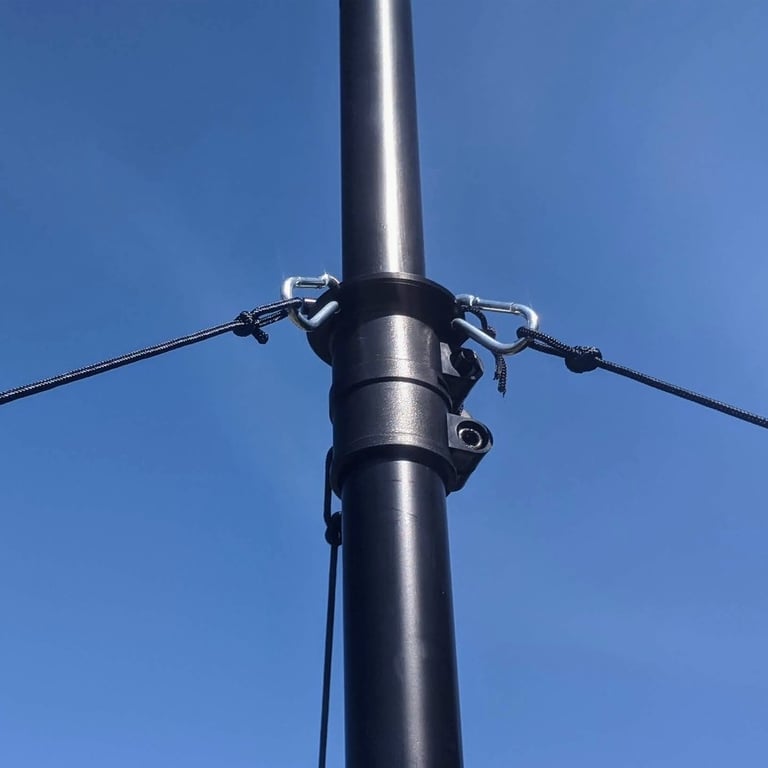

Large guy ring on a telescopic mast

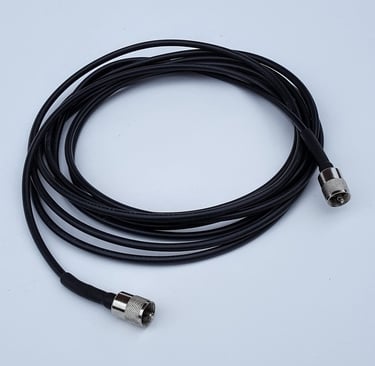

Terminated coax cable

We recommend RG Mini 8 cable for our antennas.

We offer the cable in 15, 25 and 35m lengths with other lengths to order.

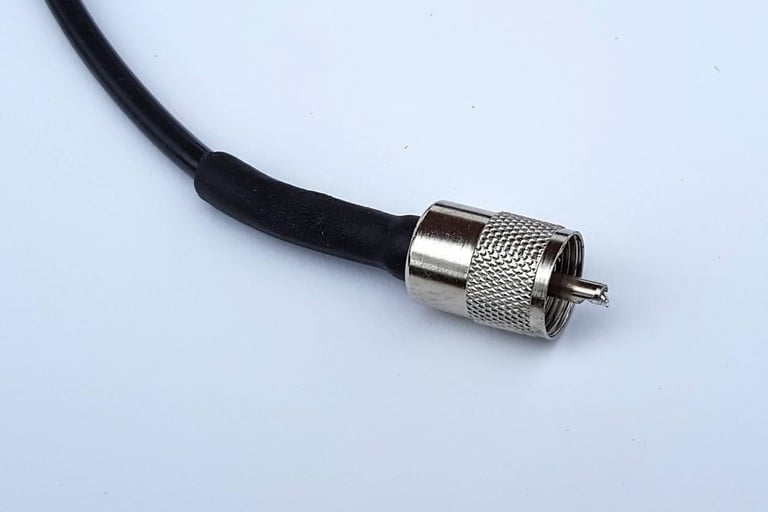

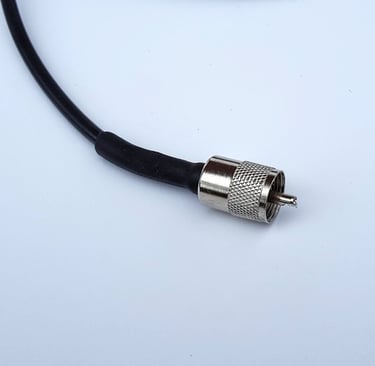

The cable is pre terminated with 2 x PL259 plugs with soldered connections.

To maintain the performance of the antenna system the cable entry to the plug is encapsulated in a sealed sleeve to prevent water ingress and provide additional strength and strain relief at the connection point.

Cable specification

Impedance 50 ohms, Capacitance 80pF/m, Velocity ratio 80%

Attenuation per 100ft length

5MHz / 0.48dB, 10MHz / 0.7dB, 30MHz / 1.3dB
